POWER GENEX

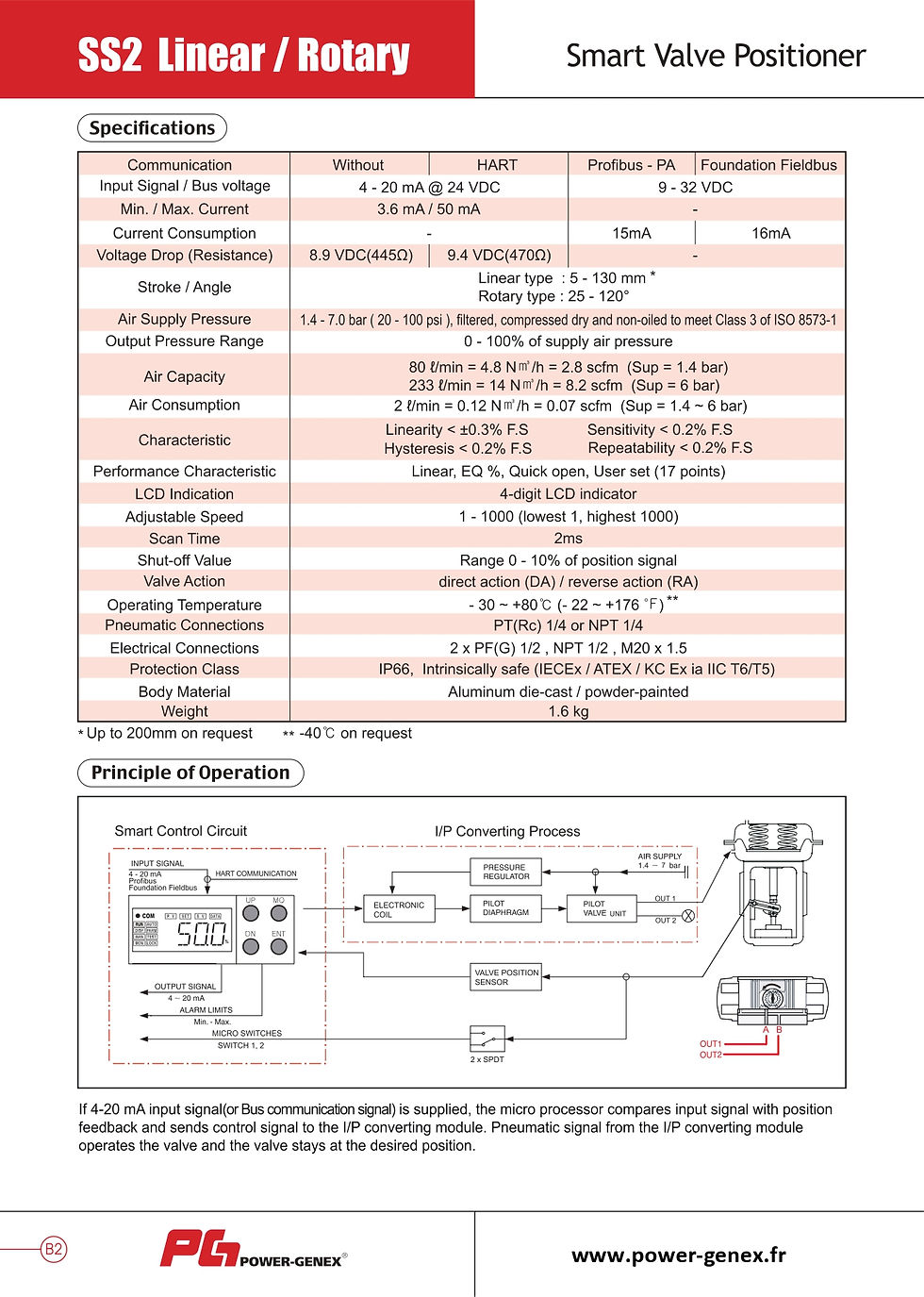

SS2L-TFEXATEX



Introduction

Smart performance with innovative and ever-strong coil module even under harsh working environments

Features
- Easy and quick auto-calibration
- Detecting RA (reverse acting) or DA (direct acting) automatically regardless of wrong air connections
- Available to use for single or double acting without any special adjustments
- Compact design allowing to be installed on small actuators
- Providing error messages against performance failures
- Possible to test the actuator with any fixed signal under a test mode
- Programmable characteristic curve with 17 points
- Wide operating temperature range -40 ~ +80℃
- Improved control of high-friction globe and ball valves by eliminating an overshoot and a hunting
- Low air consumption
- Providing a mounting bracket to meet IEC 60534-6-1 for linear valves
- Supporting a NAMUR mounting pattern VDI/VDE 3845 (IEC 60534-6-2) and providing a multi-size mounting bracket for rotary valves
Option
- Output position transmitter (4 - 20 mA)
- 2 x alarm limit or micro switch (SPDT)
- By-pass (Auto / Manual screw)
- Intrinsically safe Ex ia IIC T6/T5
- HART communication
- Profibus PA communication
- Fieldbus FF communication
